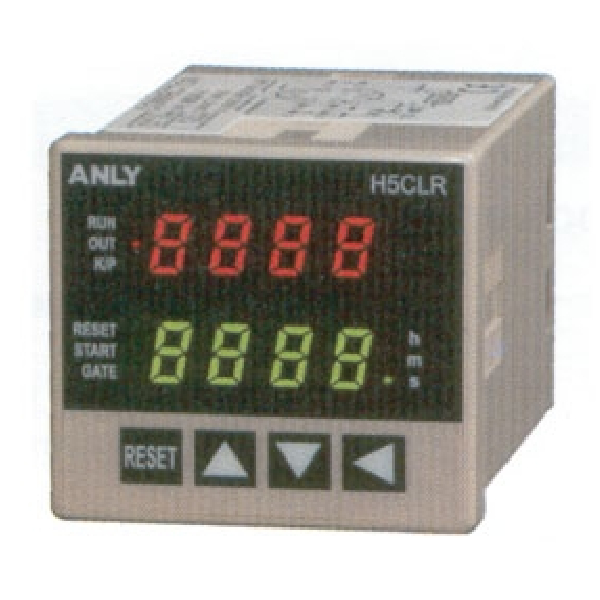

Digital Multi-function TimerModel : H5CLR
รายละเอียด
| Operating Voltage |
100 ~ 240 VAC |
| Allow Operating Volt. Range |
85-110% of rated operating voltag |
| Rated Frequency |
50/60 Hz |
| Contact Rating |
250 VAC 5A (resistive load) |
| Reset Time |
MAX 0.1S |
| Power Consumption |
Approx. 2.5 VA |
| Life |
Mechanical : 5,000,000 times / Electrical : 100,000 times |
| Ambient Temperature |
-10~+50°C |
| Ambient Humidity |
Max 85% RH |
| Weight |
Approx. 120g. |
ลักษณะเฉพาะ
– 11 field selectable output modes accommodate a wide variety of applications
– 7-segment-display for clear display and effective monitoring
– All parameters set by scroll through menus accessed from the front panel
– Field selectable time ranges from 0.001 sed to 9999 hours
– Precision control possible to 0.001 sec
– Four levels of key protection provided
– Count-Up and Count-Down mode user selectable
– Memory function available
– CE certified
