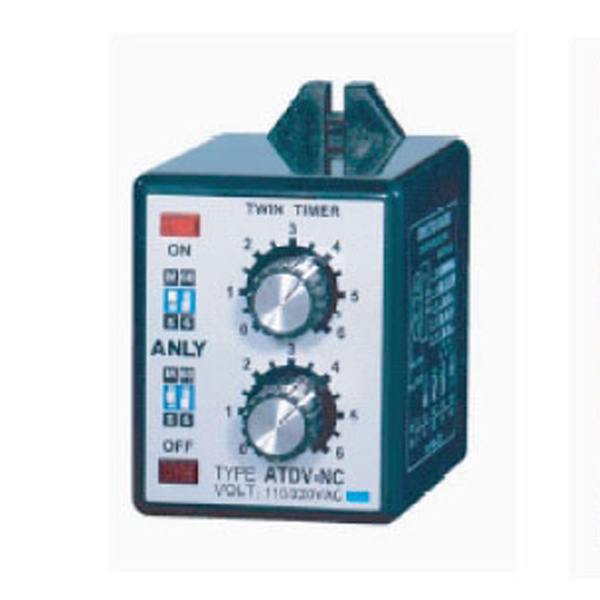

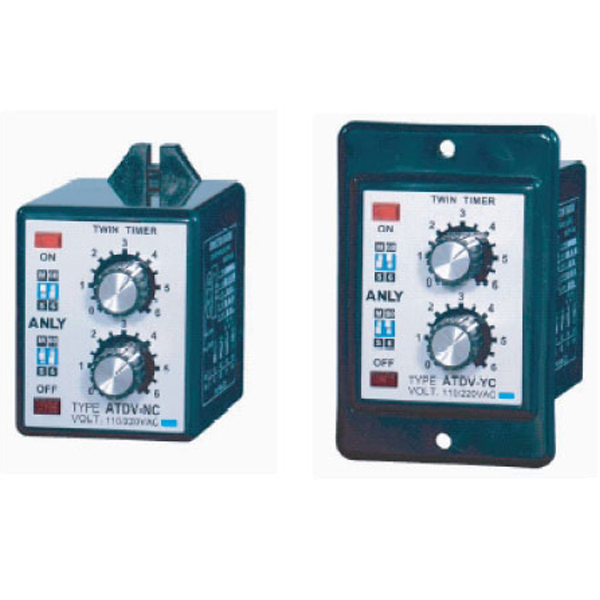

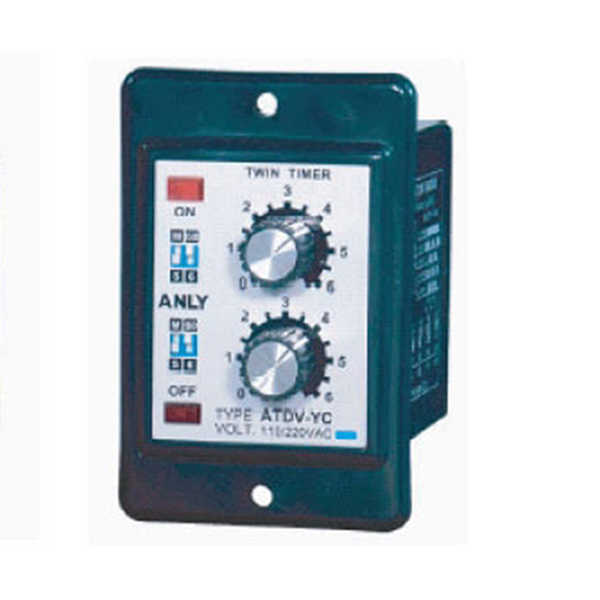

Analog Twin TimerModel : ATDV
รายละเอียด
| Operating Voltage |
220 VAC |
| Allow Operating Volt. Range |
85-110% of rated operating voltage |
| Rated Frequency |
50/60 Hz |
| Contact Rating |
250 VAC 5A (resistive load) |
| Reset Time |
MAX 0.2S |
| Power Consumption |
Approx. 2 VA |
| Life |
Mechanical : 5,000,000 times / Electrical : 100,000 times |
| Ambient Temperature |
-10~+50°C |
| Ambient Humidity |
Max 85% RH |
| Weight |
Approx. 220g. |
ลักษณะเฉพาะ
– Customized CMOS IC for low power consumption, high operation stability and extreme timing accuracy
– Independent adjustment for continuous ON-OFF operation and 16 different time ranges available
– Wide operating voltages range in a single unit, from 110VAC to 240VAC
– 5 timing series available (NA, NB, NC, ND, NE)
– Each timing series has 4 time ranges, selectable via DIP switch
