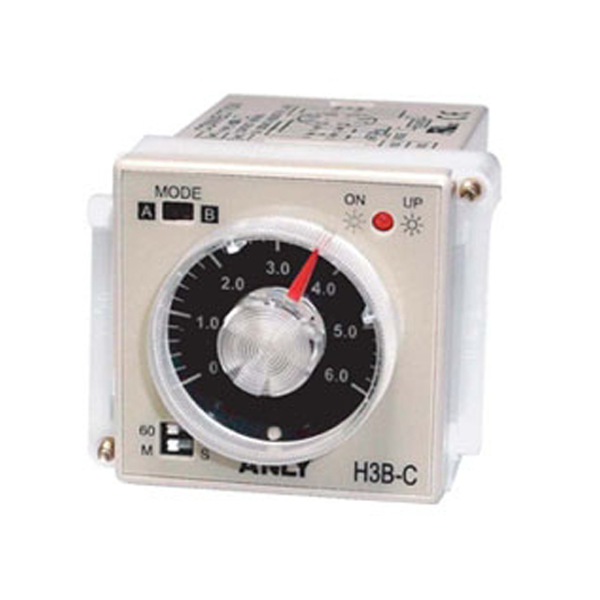

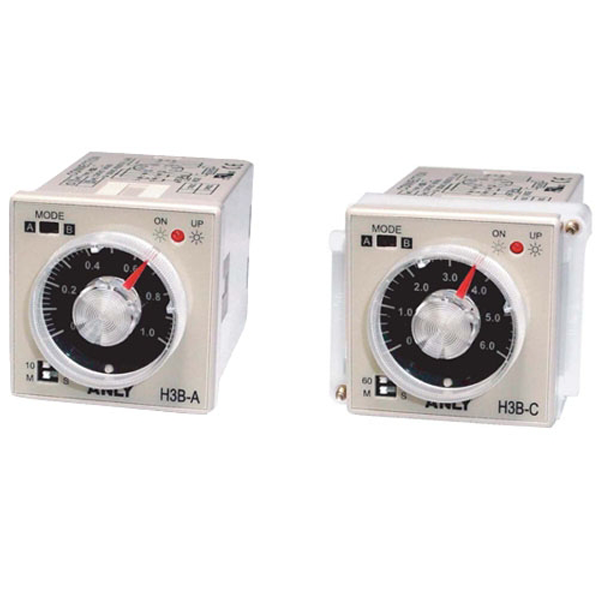

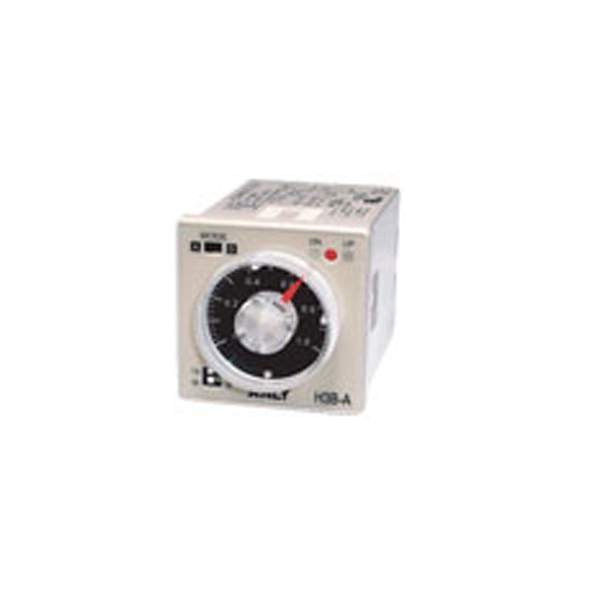

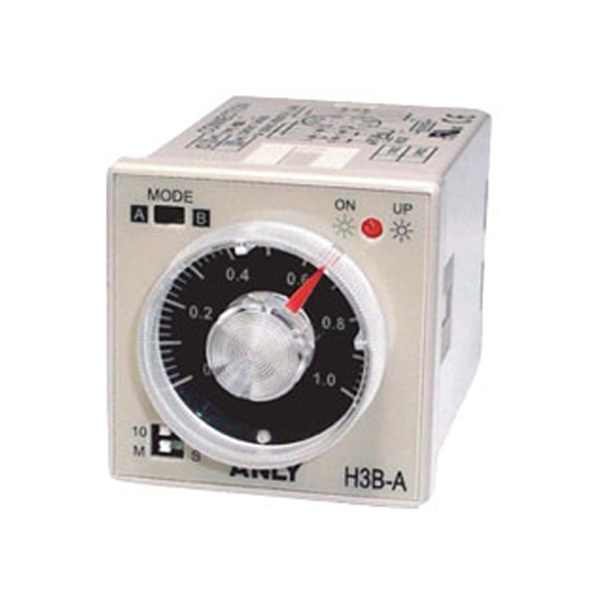

Analog TimerModel : H3B-A/B/C/D/E
รายละเอียด
| Operating Voltage |
200 ~ 240 VAC |
| Allow Operating Volt. Range |
85-110% of rated operating voltage |
| Rated Frequencyz |
50/60 Hz |
| Contact Rating |
250 VAC 5A (resistive load) |
| Reset Time |
MAX 0.1S |
| Power Consumption |
Approx. 6.5 VA |
| Life |
Mechanical : 5,000,000 times / Electrical : 100,000 times |
| Ambient Temperature |
-10~+50° |
| Ambient Humidity |
Max 85% RH |
| Weight |
Approx. 105g |
ลักษณะเฉพาะ
– 5 timing series available (A, B, C, D, E)
– Each timing series has 4 time ranges, selectable via DIP switch
– 2 modes selectable via DIP switch : Mode A (2C) for DPDT time-limiting output contacts & Mode B (1A1C) for SPDT instantaneous and time-limiting output contacts
– UL, C-UL recognized and CE certified
